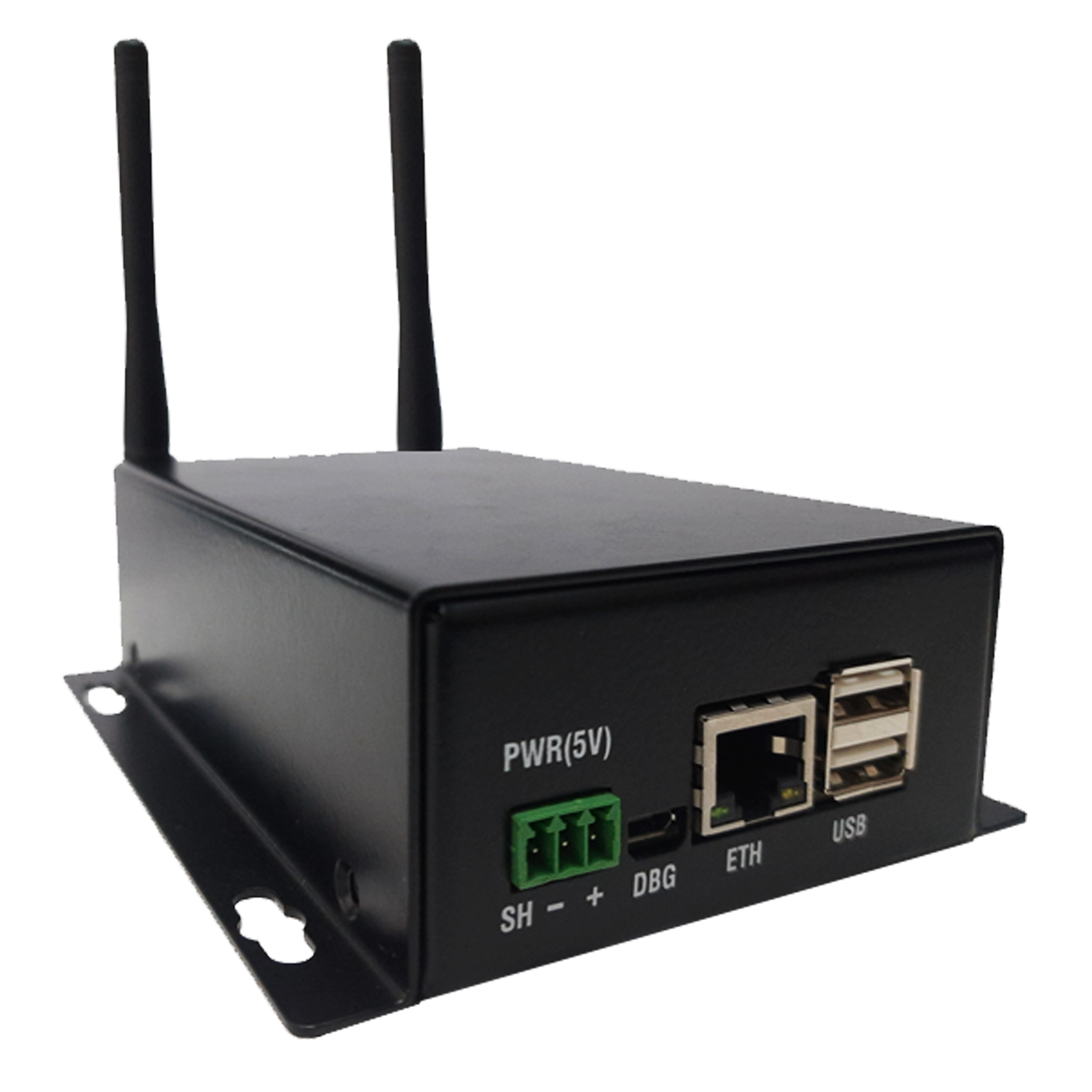

BLE IIoT Gateway

₹25,000.00

SOM: phyCORE-A5D2x / phyCORE-i.MX 6UL

Clock Frequency: 500 MHz / 528 MHz

Processor Architecture: ARM-Cortex A5 / ARM-Cortex A7

RAM: 64MB RAM / 512MB RAM

ROM: 32MB NOR Flash / 512MB NAND Flash

OS Build: Yocto Linux

Linux Kernel-Version: Linux Kernel 4.9

Quantity

Many Industries have different sensor nodes for different application which occupies with Gateway solutions, Here comes with the BLE Industrial IOT Gateway, which collects the data from the sensor nodes and send to the cloud server Via: Network - WiFi, Ethernet and LTE. RuggedBoard being one of the industrial open source SBC. It is a suitable and robust selection for the usage in BLE IIOT Gateway. It is a simple, flexible, low cost and compatible with the solutions for Industrial Application.

Feature	Description
Processor	ARM Cortex A5/A7 CPU @ 500+ MHz, ARMv7-A Arch
Operating System	Yocto-Linux, Kernel-Version 4.9
Memory	64MB/512MB RAM 32MB/512MB ROM Flash
BLE - Connectivity	BLE 4.2 BLE 5.0 BLE 5.1 BLE 5.2
Other Connectivity	WiFi 1 x Ethernet 10/100 Mbps 4G LTE
Power Input	5V DC, 3A
Dimension	80(W) x 45(H) x 140(D)

Operating System	Yocto Build Custom Linux, Kernel-Version 4.9
Programming Language Support	Python3 C C++ NodeJS
Database	SQLite - With support for C Language and Python3
Web Server	Lighttpd Webserver
Network Protocols	SSH, FTP, NTP, SNMP, TFTP, OpenVPN
Connectivity	PPP libQMI AT Commands WPA-Supplicant BlueZ 5.50
IoT Protocols & Frameworks	MRAA library provides interface to IO & Hardware Buses (GPIO, UART, I2C, SPI, ADC, PWM) on Linux In C & Python UPM sensor library with high-level APIs for sensors and actuators in IoT solutions. MQTT, COAP & libcurl for HTTP Protocol SDK for AWS
